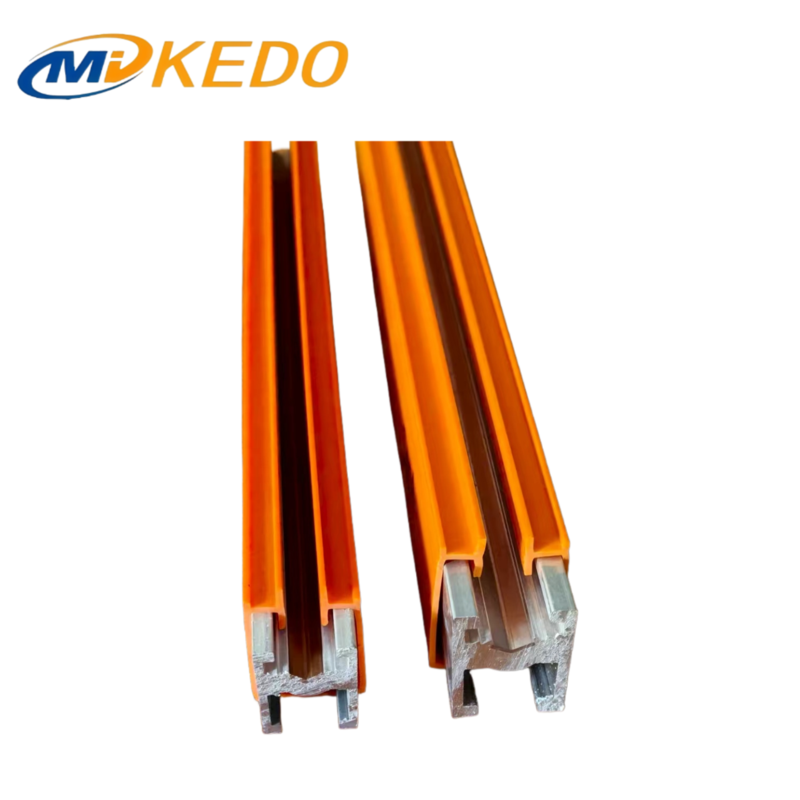

QKD type monopole safe slide wire is a new type of power supply to system of mobile machinery equipment feed, conductor is a special formula of high quality aluminum alloy profile, an outer jacketed with special PVC material,   play a security role rain, snow, dust prevention, anti electric shock. The advantages of simple structure, convenient   installation and maintenance, is widely used in the power supply line, metallurgy, chemical, mining machinery, dock, goods yard and other mobile devices.

1. Conductor: Aluminum material, with vertical and horizontal rigidity, but also has large surface area, can

     fully guarantee the heat dissipation, conductor pressing stainless steel strip

2. Jacket: Provide safety standards for the degree of protection IP23, the sheath shape can be waterproof

     and dustproof.

3. As a very durable contact surface

Features of the products:

1. Safe and reliable, no risk of electric shock even touch with fingers, in line with the IP23 standard.

2. Saving energy and reducing consumption, using a special formula of aluminum alloy profile as a    conductor; resistance is small, can minimize the loss of electric energy.

3. The service life is long, the conductor jacket also uses the unique formula, greatly prolongs the

service life of the slide wire system.

4. The collector can be three-dimensional movement, can satisfy the uninterruptible power supply

equipment; adopting double insulation design, work more safe and reliable.

5. New materials, new technology, new process to ensure the product has a higher corrosion

resistance, weather resistance and operating temperature range of use, more safe and reliable

working performance.

6. Adopts composite design, easy installation and maintenance, especially suitable for high altitude

operation

Packaging & Shipping

Packaging

Material : Paper, bubble film, woven cloth, wood

Packaging method : Cardboard boxes, wooden frame,iron frame,Cable reel

Packaging Details :

We have rich experience in packaging,There are different solutions depending on the goods,Packing Reference:

Insulated conductor rails

500 M: 135cm * 135cm * 70cm

1000 M: 150cm * 150cm *90cm

Company Information

Dongguan Kedo Electric (mobile security slide wire) CO., LTD. (KEDO) specialized in manufacturing and selling mobile power-supply equipments and

low pressure control system, is also the supplier of many global enterprise.

Core product:

Continuous jointless insulation safety electric rail (MKD),

Jointless unipolar sliding contact line (DKD type).

Tubular safety sliding contact line (GKD type),

Super flow single segment security slide wire flat cable (QKD)

C-rail power supply system (CKD),

Automatic take-up device (ZKD type),

Waterproof model line switch (KOB),

New-type industrial intelligent remote controler (KBB)

Combined type power light (KOD type), etc.;
