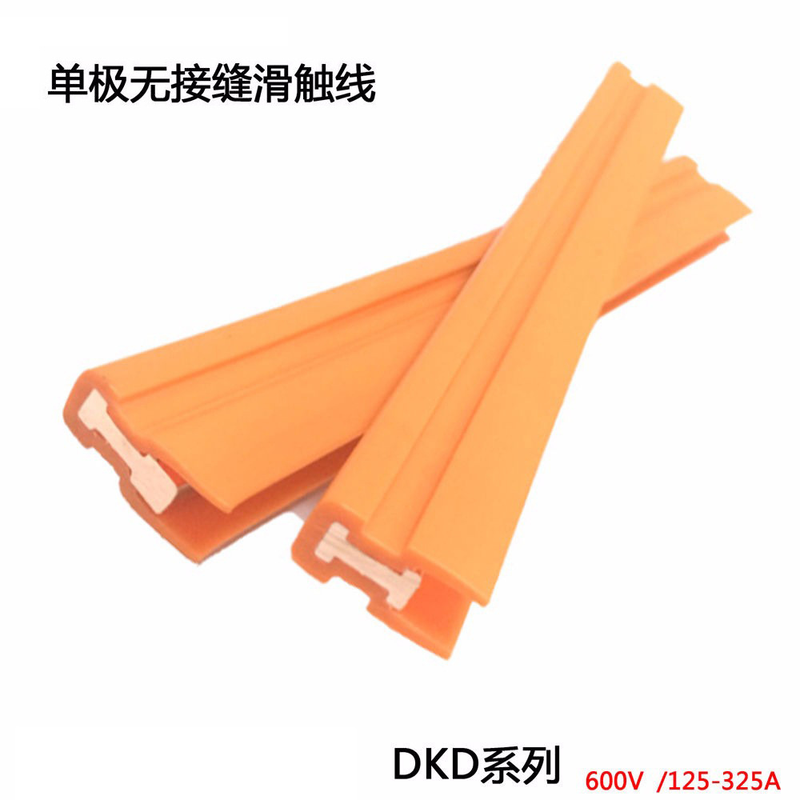

DKD series products

• DKD products can be bent in X and Y axis when installed

• Secure and stable economy

• The minimum radius is 100cm, and the length of a single root   can reach 5000 meters

• It has the advantages of small size, convenient installation and   convenient transportation

• There are five models: 125A, 175A, 225A, 275A and 325A

• Suitable for automation equipment, large cranes, mine   equipment, outdoor roller coaster, large laneway,Stacker, sightseeing bus and other mobile equipment








  Industrial type insulation safety rail (accessories)



  Type insulation safety rail (installation diagram)

  Use Case Diagram

  Product Introduction

  The AC resistance and inductive reactance values of the seamless sliding contact line are lower than those of any other form of safety sliding contact line, saving   energy. The product takes up little space and can be processed and manufactured into circular segments of   various radii according to the user's requirements. Its greatest advantage lies in its long continuous conductor, few joints, fewer fault points, and more reliable operation. The conductor is made of 99% national standard   oxygen-free copper, which has excellent electrical conductivity and fast heat dissipation. It is also made of metal   graphite material with high current density, low impedance value, and small line loss. The brushes have high   electrical conductivity and high wear resistance. The receiving device is flexible in movement and has good directional   performance, effectively controlling contact arcs and   cross-arc phenomena. As a new generation of power transmission system introduced from abroad, it has   successfully replaced the traditional power supply method for amusement equipment. With its characteristics   of safety, durability, energy conservation and consumption reduction, it has rapidly gained high recognition in the amusement industry.
